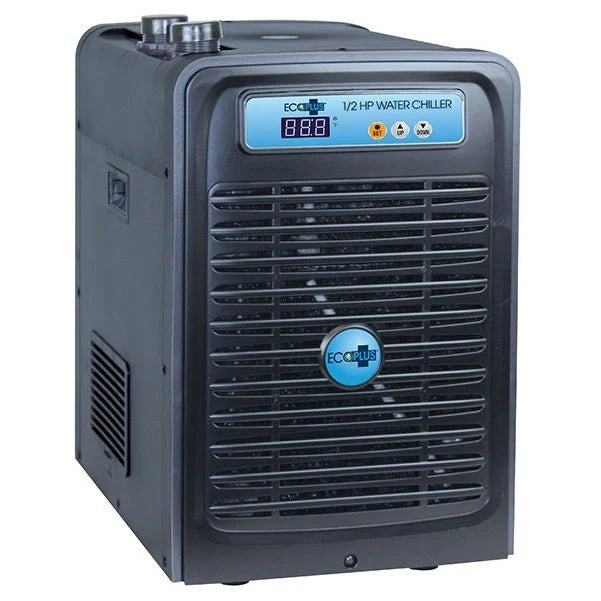

EcoPlus Water Chiller

Your EcoPlus® Water Chiller incorporates the latest in refrigeration technology and manufacturing techniques to ensure reliability and long service life. Some of these features include:

• Digital Control System for stable and accurate temperature control

• High efficiency energy use for economical operation

• Freon-free R134a refrigeration system that is safe and environmentally friendly

• Anti-corrosive, pure titanium evaporator

• Auto overcurrent protection system

• Retains settings if the unit is unplugged or in case of power outage (auto restart)

Specifications
1/10 HP:

Fittings are 1/2 in. 120 V / 60 Hz / 264 W / 2.2 Amps.

Pump Size: Minimum 66 GPH/Maximum 317 GPH.

Dimensions are 15.75 in W x 8.58 in D x 16.34 in H and weighs 28.7 lb.

1/4 HP:

Fittings are 3/4 in. 120 V / 60 Hz / 360 W / 3 Amps.

Pump Size: Minimum 264 GPH/Maximum 660 GPH.

Dimensions are 17.13 in W x 11.61 in D x 18.5 in H and weighs 42.5 lb.

1/2 HP:

Fittings are 3/4 in male NPT with hose fittings. 120 V at 4.4 Amps.

Pump Size: Minimum 317/Maximum 793 GPH.

Dimensions are 21 in W x 15.5 in D x 22 in H and weighs 52 lb.
